Ceres

Ceres

Large, triple expanding UHD HDR production vehicle built around an IP core.

What’s a Rich Text element?

The rich text element allows you to create and format headings, paragraphs, blockquotes, images, and video all in one place instead of having to add and format them individually. Just double-click and easily create content.

Static and dynamic content editing

A rich text element can be used with static or dynamic content. For static content, just drop it into any page and begin editing. For dynamic content, add a rich text field to any collection and then connect a rich text element to that field in the settings panel. Voila!

How to customize formatting for each rich text
  • Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.
  • ‍Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Headings, paragraphs, blockquotes, figures, images, and figure captions can all be styled after a class is added to the rich text element using the "When inside of" nested selector system.

Operational Dimensions: 17.5m long x 6.6m wide x4.0m high
Operational Power: 2 x 125A 3-phase, 400VAC

Production

Snell Advanced Media Kahuna Vision Mixer 120 Inputs / 64 Outputs
6 M/Es
FormatFusion3 on Inputs and Outputs
Cliptrax
20 Output Clipstore - 64GBFull UHD Options
Option of second mixer: Grass Valley Kayenne or Kahuna.

Cameras

Wired for 30 CCUs

Video and Monitoring

Arista 7504 100G IP Core
SAM IQUCP 25/50 SDI/IP Gateways
SAM MV820 IP Multiviewers
SAM UHD 1100 UHD/3G/HD/SD conversion
KVM Matrix
Vega 400 3G SDI Video Router

Audio

Calrec Artemis Ray Digital Audio Console
Bluefin 2 High Density Signal Processing
456 Channels with full signal processing
128 Mix busses for Group and Main Outputs
96 multi-track busses
48 Aux busses
56 Fader, A/B Layers
7 MADI inputs & 7 MADI outputs
1 Dante Network Audio interface
Dolby Atmos Capable
Remote Hydra as required
Genelec 8300 Series Monitoring

Communications

Telex Adam Intercom System - 240 Ports (Analogue, Madi, OMI)

Record & Playback

Up to 10 x EVS 12 Channel servers

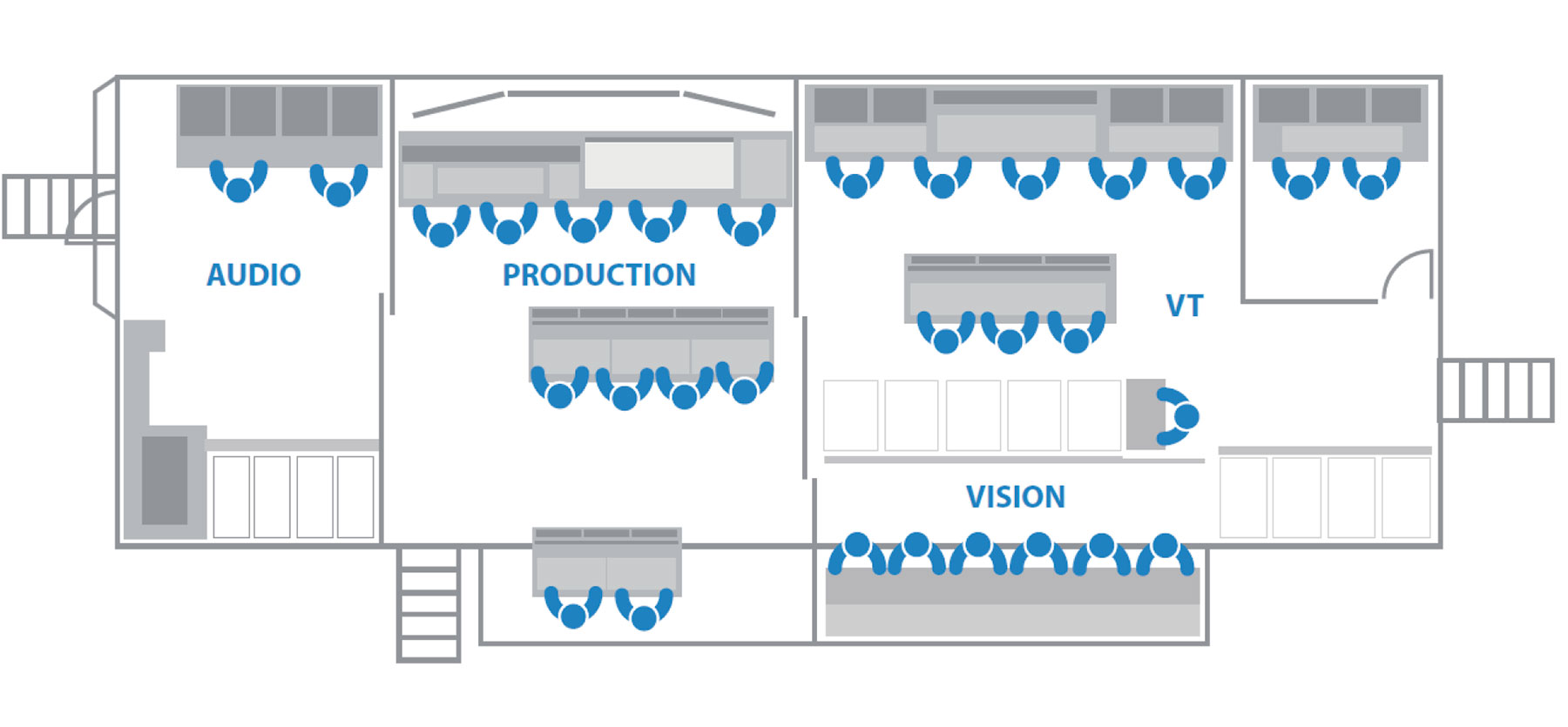

Ceres Floor Plan
